Product Description
Mixer&Blenders Manufacturer Support OEM&ODM Service1. Main Application:
2D mixer is used to mix powder, granules and particles in pharmaceutical, food and chemical fields.
2. Working Principle:

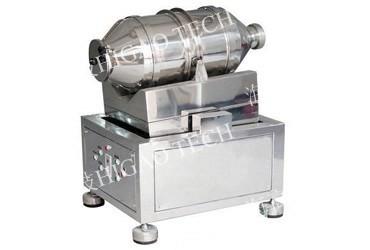

2D mixer is composed of rotary barrel and a swing barrel. Rotary barrel makes self-rotation around its axis and swing barrel also swings
around horizontal axis synchronously, which makes material mixed evenly and effectively.
It is featured with short mix time, good uniformity, big output, easy to discharge.
| (2D Series) Two Dimensional Mixer (2D Mixer) |
| Model | Total volume | Loading volume | Rotary motor | Swing motor | Dimension(L×W×H) | Weight |
| 2D-50 | 50L | 25L | 0.55kw/20rpm | 0.75kw/11.5rpm | 900×750×950mm | 110kg |
| 2D-100 | 100L | 50L | 0.75kw/20rpm | 1.1kw/11.5rpm | 1350×800×1150mm | 180kg |
| 2D-200 | 200L | 100L | 1.1kw/20rpm | 1.1kw/7.5rpm | 1800×1000×1350mm | 280kg |
| 2D-300 | 300L | 150L | 1.1kw/17rpm | 1.1kw/7.5rpm | 1850×1050×1450mm | 350kg |
| 2D-400 | 400L | 200L | 1.1kw/15rpm | 1.1kw/7.5rpm | 1950×1150×1550mm | 500kg |
| 2D-600 | 400L | 300L | 1.1kw/15rpm | 1.5kw/7.5rpm | 2000×1300×1600mm | 1000kg |
| 2D-800 | 500L | 400L | 1.5kw/12rpm | 1.5kw/7.5rpm | 2100×1400×1700mm | 1500kg |
| 2D-1000 | 600L | 500L | 1.5kw/12rpm | 2.2kw/7.5rpm | 2500×1500×1800mm | 1700kg |
| 2D-1500 | 800L | 750L | 3kw/10rpm | 4kw/7.5rpm | 2600×1650×2000mm | 2000kg |
| 2D-2000 | 1000L | 1000L | 4kw/8rpm | 4kw/5rpm | 2800×1750×2100mm | 2500kg |
| 2D-3000 | 1500L | 1500L | 5.5kw/6rpm | 5.5kw/5rpm | 3200×2100×2500mm | 3500kg |
| 2D-4000 | 2000L | 2000L | 7.5kw/5rpm | 11kw/3.7rpm | 3600×2500×2900mm | 4000kg |
| 2D-6000 | 6000L | 3000L | 7.5kw/5rpm | 11kw/3.7rpm | 4500×3900×3500mm | 6000kg |
| 2D-8000 | 8000L | 4000L | 11kw/4rpm | 15kw/3.7rpm | 5000×3300×4000mm | 7500kg |
